Driving: the car, truck and bike dashboard

Sit in a vehicle and a full dashboard appears across the bottom of the screen: a real speedometer and rev counter, gears you change yourself, lamps, indicators, a horn, and a steering wheel and pedals you can drive with the mouse, a wheel or a gamepad.

Wolf Territories only. This needs WolfViewer or WolfStorm on a Wolf Territories region. On other grids the menu items, buttons and panels are not shown at all.

Other viewers drive vehicles with the normal keys (arrows or W A S D, Page Up and Page Down), exactly as before. Vehicle scripts keep working for them.

Overview

A red Rolls-Royce coupe seen from behind on a sandy beach on the Sandbox region, with a lighthouse and palm trees ahead. Across the bottom of the screen is the car dashboard: a steering wheel on the left, three round dials in the middle (speedometer, rev counter showing N, and a fuel, temperature and odometer dial), a MANUAL gear lever with 1, N and R, brake and accelerator pedals, and a row of lamp buttons. Above it on the right are the CAR, TRUCK, BIKE, KM/H, TRIP 0, PANEL, MAP, CONTROLS, HELP and X buttons. — ScreenshotThe Car design on the Sandbox region, driving a Rolls-Royce coupe. The vehicle name shows bottom left.

How it opens

By itself when you sit on something physical (a vehicle being driven), or when the vehicle’s script sends the dashboard its readings. It opens once for each seat; close it and it stays closed until you sit down again.
World > Car Dashboard in the menu bar, any time.
The car icon in the bottom-right corner of the screen, beside the Toolbar, Game, Plane and Boat icons. It is lit while the dashboard shows. There is also a Dashboard button you can put on a toolbar.
X on the dashboard closes it.

One panel uses the bottom of the screen at a time. Opening the dashboard switches Flight or Sailing Mode off, and the Wolf Roleplay game bar gives up the bottom while the dashboard shows.

Three designs

Each is modelled on a real vehicle. Pick one with the CAR, TRUCK and BIKE buttons; your choice is remembered for that vehicle, and a vehicle’s script can choose one too.

Car

After the Porsche 911 (992) cluster: the analogue rev counter in the middle between the speedometer and an information dial, red needles in the BMW M style, and standard warning lamps. Eight gears, manual or automatic (P R N D).

Truck

After the Scania R 450 with its 12-speed range-splitter gearbox (Opticruise): a low-revving rev counter with its green economy band, a speedometer with the 90 km/h limiter, the gear with its range (LOW / HIGH) and split, twin air-brake pressure needles, fuel and AdBlue, the retarder, and the tachograph’s driving time and break countdown. Manual or automatic (R N A).

Bike

After the BMW S 1000 RR and Ducati Panigale colour screens: a bar rev counter across the top with a shift light, the gear in the middle, digital speed and your lean angle, with handlebars instead of a wheel. A sequential box: 1 N 2 3 4 5 6.

Using the dashboard

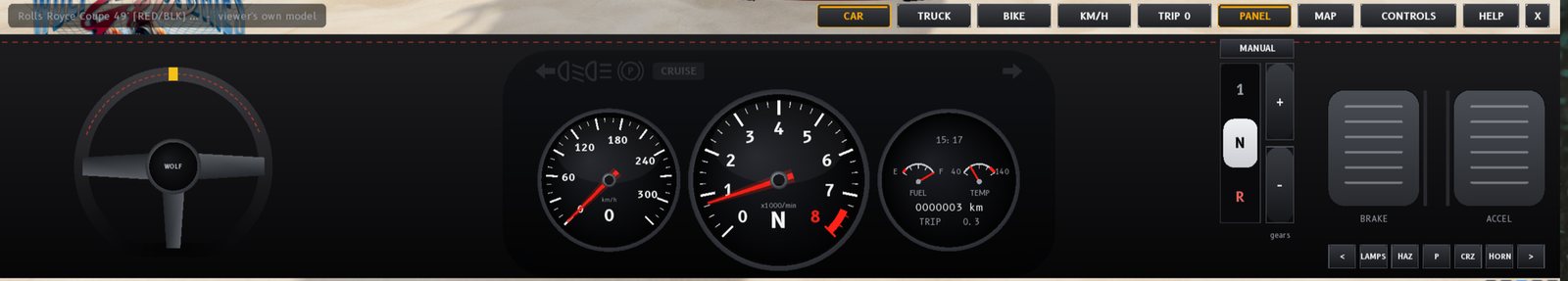

Close-up of the car dashboard. Top row, right: CAR (lit), TRUCK, BIKE, KM/H, TRIP 0, PANEL (lit), MAP, CONTROLS, HELP and X. Below: a three-spoke steering wheel marked WOLF, the indicator, lamp, parking and CRUISE warning lights, a speedometer to 300 km/h, a rev counter to 8 with N in its centre, a dial with the clock, fuel and temperature gauges and the odometer, the MANUAL gear lever at N with plus and minus buttons, BRAKE and ACCEL pedals, and the lamp buttons: left arrow, LAMPS, HAZ, P, CRZ, HORN and right arrow. — ScreenshotThe dashboard close up: the buttons along the top, the instruments, the gear lever, the pedals and the lamp row.

The buttons along the top

The buttons along the top of the dashboard
Button	What it does
CAR / TRUCK / BIKE	The three designs. The lit one is showing.
KM/H or MPH	The speed units. Click to switch.
TRIP 0	Resets the trip meter (and the bike's lean record).
PANEL	The background on or off. With it off only the instruments and controls are drawn, and clicks in the gaps reach the world.
MAP	The World Map, centred on where you are driving.
CONTROLS	Driving Controls: a steering wheel, pedals or gamepad, and the keys for the horn, lamps and gears.
HELP	The quick guide (it also opens by itself the first time you use each design). Click above the dashboard to close it.
X	Closes the dashboard. World > Car Dashboard, or the car icon, brings it back.

Driving with the mouse

Drag the steering wheel (the handlebars on the bike) and hold the BRAKE and ACCEL pedals (THROTTLE on the bike).
The lamp row: < and > are the indicators, LAMPS steps through off, dipped and main beam (it reads MAIN on main beam), HAZ the hazard lights, P the handbrake, CRZ cruise control and HORN the horn. Hover any of them to see its key.
The keys work as always: Up or W, Down or S, Left and Right, Page Up and Page Down.

Gears

Car (8 gears) and truck (12): the button over the lever picks MANUAL (the default) or AUTO, remembered for each design.
MANUAL: Page Up or + is a gear up, Page Down or − a gear down. Past top gear you stay in top; below 1 is N, then R. You sit down in N.
AUTO: the car’s lever is P R N D and the truck’s R N A; the box picks the gear (D or A), and + or − take one yourself (M). Click D or A to hand it back. The truck shows its range (LOW / HIGH) and split.
Bike: sequential, 1 N 2 3 4 5 6, with − and +.
Every step sends the vehicle a Page Up or Page Down, just as the keys do, so gearbox scripts written for the keys work unchanged.
The speed shown is the vehicle’s own. The revs and gear come from the vehicle’s script when it sends them, and from the viewer’s own model of that design when it does not.

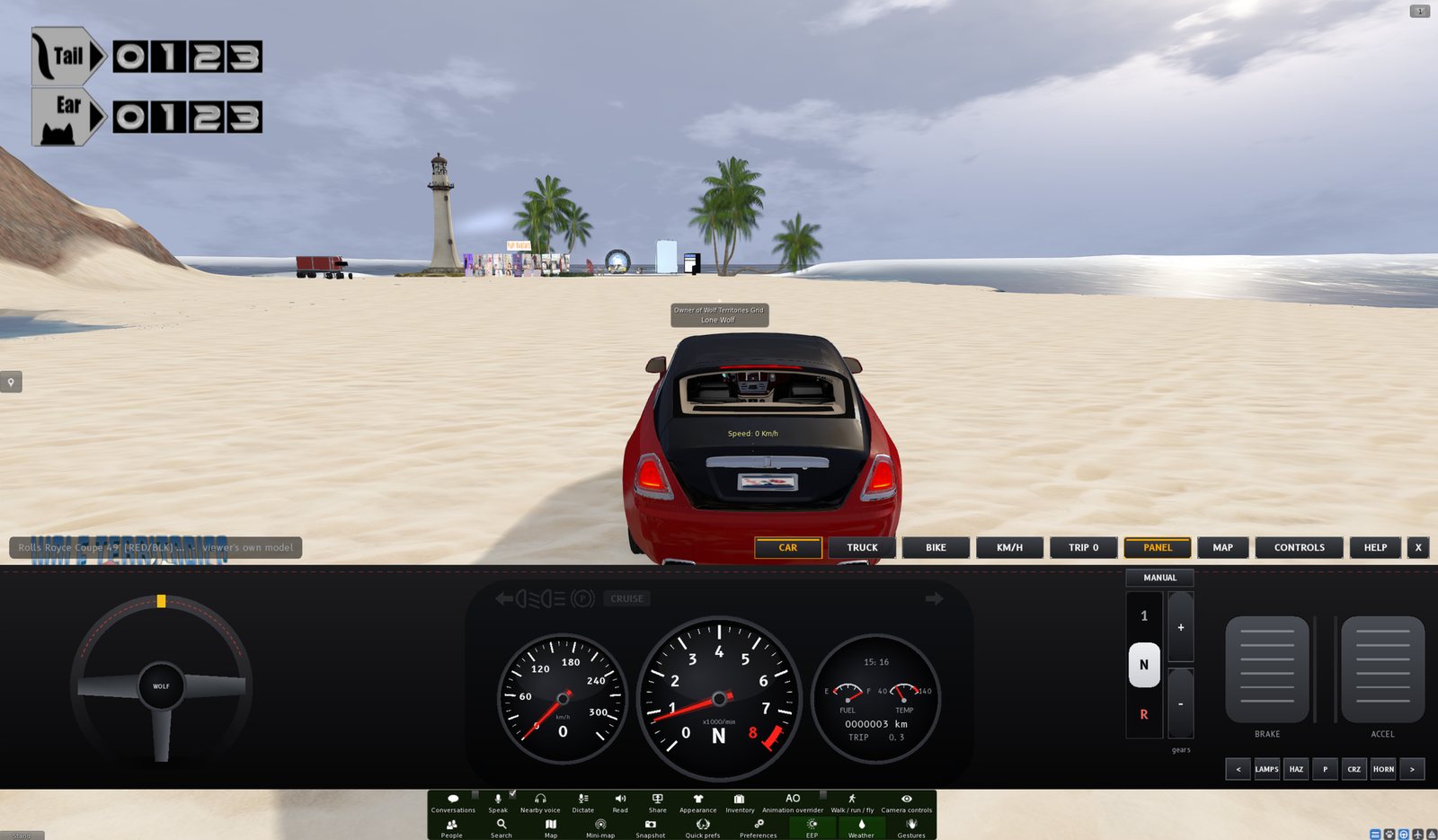

The same car dashboard with the viewer's bottom toolbar showing underneath it: buttons for Conversations, Speak, Nearby voice, Dictate, Read, Share, Appearance, Inventory, Animation overrider, Walk / run / fly, Camera controls, People, Search, Map, Mini-map, Snapshot, Quick prefs, Preferences, EEP, Weather and Gestures. — ScreenshotWith the toolbar shown, the dashboard sits on top of it.

Wheels, pedals and keys

Open Driving Controls from the dashboard’s CONTROLS button or World > Driving Controls. Whatever you drive with, a wheel, a gamepad or the keyboard, the vehicle receives the same controls the keys send, so every vehicle works with it.

A steering wheel, pedals or a gamepad

Plug it in. In WolfViewer, choose and enable it in Joystick Configuration (the button at the top of Driving Controls). In WolfStorm, press any button on it: browsers only show a controller after a button press.
For each control (steering, accelerator, brake and an optional clutch) press Detect and move it. The axis is picked for you, and the bar shows what is read.
Tick “Drive with this controller whenever I sit on anything”. It then stops moving your avatar and the flycam.

Each control has a tick box to turn it the other way round, and each pedal one for whether it rests at one end of its travel or in the middle.
Combined pedals: one axis, accelerator one way from the middle and brake the other.
Dead zone: how far the wheel or a pedal moves before it counts. Raise it if the vehicle creeps or turns by itself.

Horn, lamps and gears: your keys

Every action has a key (Set key; Escape cancels, Backspace removes it), a controller button (Detect) and a choice of what it sends the vehicle: nothing (only the dashboard lamp and the scripting bit), a Page Up or Page Down tap, or a chat command on a channel. Reset puts them all back. The keys you start with:

Driving actions and the keys they start with
Action	Key to start with	Sends the vehicle
Gear up	none (Page Up already does it)	Page Up
Gear down	none (Page Down already does it)	Page Down
Horn	H	nothing: the built-in horn plays
Lights	L	nothing
Left indicator	Z	nothing
Right indicator	X	nothing
Handbrake	B	nothing
Hazard lights	V	nothing
Cruise control	K	nothing

The built-in horns

With nothing set for Horn, pressing it plays the horn for the design you are using, from the vehicle, so everyone near hears it: a 1.8 second double beep for the car, a 1.6 second air horn for the truck, a 0.8 second horn for the bike. You can sound it twice in a row, then once every 2 seconds. A vehicle with a horn of its own: set Horn to send that vehicle’s chat command instead.

Scripting

Two functions, for vehicle makers. wolfDriveInput gives your script exactly how far the driver turns the wheel and presses the pedals; wolfDashboard puts your vehicle’s own readings on their dashboard. Both work only:

for a script in the linkset the driver is sitting on;
on Wolf Territories regions, and for drivers using WolfViewer or WolfStorm.

Other viewers only ever send keys, so keep a control() event as well. When a call is refused it returns an empty list or FALSE, and wolfGetLastError() says why.

list wolfDriveInput(key avatar)

Your script must hold PERMISSION_TAKE_CONTROLS from the driver, as control() needs. The viewer sends its controls when they change (at most 10 a second) and once a second when they do not, so an age over about 2 seconds means the viewer has gone. The list is empty unless that driver sits on this object and their Wolf viewer has sent controls since they sat down.

What wolfDriveInput returns
Index	Value	Type	Range
0	steer	float	-1 to 1, right is +
1	throttle	float	0 to 1
2	brake	float	0 to 1
3	clutch	float	0 to 1
4	gear	integer	WOLF_DRIVE_GEAR_P, _R, _N or _D, or 1 to 18 (a gear the driver chose)
5	buttons	integer	WOLF_DRIVE_BTN_* bits for the buttons held now
6	age	float	seconds since the viewer sent these values

The constants

WOLF_DRIVE constants
Constant	Value	Meaning
WOLF_DRIVE_BTN_GEAR_UP	1	Held: gear up
WOLF_DRIVE_BTN_GEAR_DOWN	2	Held: gear down
WOLF_DRIVE_BTN_HORN	4	Held: horn
WOLF_DRIVE_BTN_LIGHTS	8	Held: lights
WOLF_DRIVE_BTN_INDICATOR_LEFT	16	Held: indicator left
WOLF_DRIVE_BTN_INDICATOR_RIGHT	32	Held: indicator right
WOLF_DRIVE_BTN_HANDBRAKE	64	Held: handbrake
WOLF_DRIVE_BTN_HAZARDS	128	Held: hazards
WOLF_DRIVE_BTN_CRUISE	256	Held: cruise
WOLF_DRIVE_GEAR_P	-2	The lever is in P
WOLF_DRIVE_GEAR_R	-1	The lever is in R
WOLF_DRIVE_GEAR_N	0	The lever is in N
WOLF_DRIVE_GEAR_D	99	The lever is in D

A button bit is set while it is held, so act on the press: pressed = buttons & ~previous, as the example below does.

integer wolfDashboard(key avatar, list rules)

Key/value pairs, any order, any subset. Numbers outside a range are held to it; an unknown key, a key given twice, or a value that is not allowed refuses the whole call. Every value you send is kept while the driver sits in that vehicle, until you send "clear", 1. The speed is always measured by the viewer. The revs and the gear count as live while your script has sent something in the last 5 seconds; after that the viewer’s own model takes over again. At most 5 updates a second per driver (10 in a burst).

wolfDashboard keys
Key	Type	Allowed values	Note
type	string	"car", "truck" or "bike"
units	string	"kmh" or "mph"
gear	string	"P", "R", "N", "D", "S", "C", "R1" to "R4", or "1" to "18"
rpm	integer	0 to 30000 (whole number)
max_rpm	integer	1000 to 30000 (whole number)
redline	integer	500 to 30000 (whole number)
max_speed	integer	10 to 1000 (whole number)	full scale, in units
fuel	float or integer	0 to 100	percent
adblue	float or integer	0 to 100	percent
temp	float or integer	-40 to 150	coolant, degrees C
air1	float or integer	0 to 12	brake circuit 1, bar
air2	float or integer	0 to 12	brake circuit 2, bar
indicators	integer	0 to 3 (whole number)	0 off, 1 left, 2 right, 3 hazard
lights	integer	0 to 2 (whole number)	0 off, 1 dipped, 2 main beam
handbrake	integer	0 to 1 (whole number)
retarder	integer	0 to 5 (whole number)	0 off, 1..5 the script's own stages
cruise	integer	0 to 1 (whole number)
drive_time	integer	0 to 86400 (whole number)	seconds driven since the last break
odo	float or integer	0 to 9999999	km
warnings	string	a comma-separated list of: engine, oil, battery, brake, abs, temp, tyre, airbag, seatbelt, fuel, adblue, air, door, esp ("" = none)
clear	integer	0 to 1 (whole number)	1: forget every value this vehicle set

This table is generated from the region software’s own list of accepted keys.

From the dashboard's own help

wolfDashboard(llAvatarOnSitTarget(), ["type", "car",
    "rpm", 3200, "gear", "3", "fuel", 74]);

A complete car

A simple car that drives from a real wheel and pedals (or a gamepad) with proportional throttle and steering, falls back to the keys for other viewers, and drives the dashboard: revs, gear, fuel, temperature, lamps, indicators, handbrake and a low-fuel warning. Put it in the root prim of a car-shaped linkset and sit in it. A sound called “horn” in the same prim plays on the horn button.

The analogue car script (analogue_car.lsl, 208 lines: show or hide)

Download analogue_car.lsl

// Wolf Territories example - ANALOGUE CAR. A simple car that drives from a real steering wheel
// and pedals, or a gamepad, with proportional throttle and steering, and drives the driver's Wolf
// dashboard (speedometer, rev counter, gears, fuel, lamps).
//
//   wolfDriveInput(driver)   -> [steer, throttle, brake, clutch, gear, buttons, age]
//                               steer -1..1 (right +), pedals 0..1, gear WOLF_DRIVE_GEAR_* or 1..18,
//                               buttons WOLF_DRIVE_BTN_* bits, age = seconds since the viewer sent it.
//                               An empty list from any other viewer (or Firestorm): this script then
//                               drives from the keys, through control(), as every car does.
//   wolfDashboard(driver, [...]) -> the dashboard's rev counter, gear, fuel and lamps. The speed is
//                               the car's own; the viewer measures it.
//
// Both work only for a script in the linkset the driver is sitting on, and only on Wolf Territories
// regions (WolfSim). Put this in the root prim of a car-shaped linkset and sit in it. A sound called
// "horn" in the same prim plays on the horn button.

float   MAX_SPEED      = 30.0;    // m/s at full throttle in D
float   REVERSE_SPEED  = 6.0;     // m/s at full throttle in R
float   MAX_TURN       = 2.0;     // rad/s at full lock
float   TICK           = 0.1;     // seconds between control updates
integer DASH_EVERY     = 3;       // ticks between dashboard updates (the region allows 5 a second)
float   LIVE_AGE       = 2.0;     // analogue values older than this mean the viewer has gone

// This car's own six-speed automatic, for its rev counter: the speeds (m/s) where it changes up.
list    SHIFT_UP       = [7.0, 12.0, 17.0, 22.0, 27.0];
float   IDLE_RPM       = 800.0;
float   SHIFT_RPM      = 6200.0;

key     gDriver;
integer gKeys;            // the held keys (control() levels), for viewers that send no analogue values
integer gTick;
integer gPrevButtons;
integer gLights;          // 0 off, 1 dipped, 2 main beam
integer gIndicators;      // 0 off, 1 left, 2 right
integer gHandbrake;
float   gFuel = 100.0;    // percent

setupVehicle()
{
    llSetVehicleType(VEHICLE_TYPE_CAR);
    llSetVehicleFloatParam(VEHICLE_LINEAR_MOTOR_TIMESCALE, 1.0);
    llSetVehicleFloatParam(VEHICLE_LINEAR_MOTOR_DECAY_TIMESCALE, 0.2);
    llSetVehicleFloatParam(VEHICLE_ANGULAR_MOTOR_TIMESCALE, 0.2);
    llSetVehicleFloatParam(VEHICLE_ANGULAR_MOTOR_DECAY_TIMESCALE, 0.2);
    llSetVehicleVectorParam(VEHICLE_LINEAR_FRICTION_TIMESCALE, <100.0, 1.0, 1000.0>);
    llSetVehicleVectorParam(VEHICLE_ANGULAR_FRICTION_TIMESCALE, <10.0, 10.0, 1000.0>);
    llSetVehicleFloatParam(VEHICLE_VERTICAL_ATTRACTION_EFFICIENCY, 1.0);
    llSetVehicleFloatParam(VEHICLE_VERTICAL_ATTRACTION_TIMESCALE, 1.0);
}

// This car's gear for a speed (1..6), and its engine speed in that gear.
integer gearFor(float speed)
{
    integer g = 1;
    integer i;
    for (i = 0; i < llGetListLength(SHIFT_UP); ++i)
    {
        if (speed > llList2Float(SHIFT_UP, i)) g = i + 2;
    }
    return g;
}

float rpmFor(float speed, integer g, float throttle)
{
    float lo = 0.0;
    float hi = llList2Float(SHIFT_UP, 0);
    if (g > 1) lo = llList2Float(SHIFT_UP, g - 2);
    if (g <= llGetListLength(SHIFT_UP)) hi = llList2Float(SHIFT_UP, g - 1);
    else hi = MAX_SPEED;
    float frac = (speed - lo) / (hi - lo);
    if (frac < 0.0) frac = 0.0;
    if (frac > 1.0) frac = 1.0;
    float rpm = 2200.0 + frac * (SHIFT_RPM - 2200.0);
    float revving = IDLE_RPM + throttle * 2000.0;   // pulling away, the clutch slips
    if (rpm < revving) rpm = revving;
    return rpm;
}

// The lamp buttons work on the press, not while held.
pressButtons(integer buttons)
{
    integer pressed = buttons & ~gPrevButtons;
    gPrevButtons = buttons;
    if (pressed & WOLF_DRIVE_BTN_LIGHTS) gLights = (gLights + 1) % 3;
    if (pressed & WOLF_DRIVE_BTN_INDICATOR_LEFT) { if (gIndicators == 1) gIndicators = 0; else gIndicators = 1; }
    if (pressed & WOLF_DRIVE_BTN_INDICATOR_RIGHT) { if (gIndicators == 2) gIndicators = 0; else gIndicators = 2; }
    if (pressed & WOLF_DRIVE_BTN_HANDBRAKE) gHandbrake = !gHandbrake;
    if ((pressed & WOLF_DRIVE_BTN_HORN) && llGetInventoryType("horn") == INVENTORY_SOUND) llTriggerSound("horn", 1.0);
}

drive()
{
    float steer;
    float throttle;
    float brake;
    integer gear = WOLF_DRIVE_GEAR_D;

    list wheel = wolfDriveInput(gDriver);
    if (llGetListLength(wheel) == 7 && llList2Float(wheel, 6) < LIVE_AGE)
    {
        // A Wolf viewer: exactly how far the wheel is turned and the pedals are pressed.
        steer    = llList2Float(wheel, 0);
        throttle = llList2Float(wheel, 1);
        brake    = llList2Float(wheel, 2);
        gear     = llList2Integer(wheel, 4);
        pressButtons(llList2Integer(wheel, 5));
    }
    else
    {
        // Any other viewer: the keys, all or nothing. Back is reverse, as on most SL cars.
        if (gKeys & CONTROL_FWD) throttle = 1.0;
        if (gKeys & CONTROL_BACK) { throttle = 1.0; gear = WOLF_DRIVE_GEAR_R; }
        if (gKeys & (CONTROL_ROT_RIGHT | CONTROL_RIGHT)) steer += 1.0;
        if (gKeys & (CONTROL_ROT_LEFT | CONTROL_LEFT)) steer -= 1.0;
    }

    float target;
    if (gHandbrake || gear == WOLF_DRIVE_GEAR_P || gear == WOLF_DRIVE_GEAR_N) target = 0.0;
    else if (gear == WOLF_DRIVE_GEAR_R) target = -REVERSE_SPEED * throttle;
    else target = MAX_SPEED * throttle;
    target = target * (1.0 - brake);
    llSetVehicleVectorParam(VEHICLE_LINEAR_MOTOR_DIRECTION, <target, 0.0, 0.0>);
    // a right turn (steer +) is clockwise seen from above: negative about z
    llSetVehicleVectorParam(VEHICLE_ANGULAR_MOTOR_DIRECTION, <0.0, 0.0, -steer * MAX_TURN>);

    vector vel = llGetVel();
    float speed = llVecMag(<vel.x, vel.y, 0.0>);
    gFuel -= speed * TICK / 1000.0 / 5.0;          // 5 km per percent: this car's own figure
    if (gFuel < 0.0) gFuel = 0.0;

    if (++gTick % DASH_EVERY == 0)
    {
        integer g = gearFor(speed);
        string label = (string)g;
        if (gear == WOLF_DRIVE_GEAR_R) label = "R";
        else if (gear == WOLF_DRIVE_GEAR_N) label = "N";
        else if (gear == WOLF_DRIVE_GEAR_P) label = "P";
        else if (gear >= 1 && gear <= 18) label = (string)gear;   // the driver's own gear (paddles)
        float rpm = IDLE_RPM + throttle * 2500.0;
        if (label != "R" && label != "N" && label != "P") rpm = rpmFor(speed, g, throttle);
        string warnings = "";
        if (gFuel < 10.0) warnings = "fuel";
        wolfDashboard(gDriver, [
            "type", "car",
            "rpm", (integer)rpm,
            "gear", label,
            "fuel", gFuel,
            "temp", 90.0,
            "lights", gLights,
            "indicators", gIndicators,
            "handbrake", gHandbrake,
            "warnings", warnings]);
    }
}

default
{
    state_entry()
    {
        llSitTarget(<0.2, 0.0, 0.45>, ZERO_ROTATION);
        llSetSitText("Drive");
        setupVehicle();
        llSetStatus(STATUS_PHYSICS, FALSE);
    }

    changed(integer change)
    {
        if (!(change & CHANGED_LINK)) return;
        key av = llAvatarOnSitTarget();
        if (av != NULL_KEY && gDriver == NULL_KEY)
        {
            gDriver = av;
            llRequestPermissions(av, PERMISSION_TAKE_CONTROLS);
        }
        else if (av == NULL_KEY && gDriver != NULL_KEY)
        {
            gDriver = NULL_KEY;
            gKeys = 0;
            gPrevButtons = 0;
            llSetTimerEvent(0.0);
            llSetVehicleVectorParam(VEHICLE_LINEAR_MOTOR_DIRECTION, ZERO_VECTOR);
            llSetVehicleVectorParam(VEHICLE_ANGULAR_MOTOR_DIRECTION, ZERO_VECTOR);
            llSetStatus(STATUS_PHYSICS, FALSE);
            llReleaseControls();
        }
    }

    run_time_permissions(integer perm)
    {
        if (!(perm & PERMISSION_TAKE_CONTROLS)) return;
        llTakeControls(CONTROL_FWD | CONTROL_BACK | CONTROL_LEFT | CONTROL_RIGHT
                       | CONTROL_ROT_LEFT | CONTROL_ROT_RIGHT | CONTROL_UP | CONTROL_DOWN, TRUE, FALSE);
        llSetStatus(STATUS_PHYSICS, TRUE);
        gTick = 0;
        llSetTimerEvent(TICK);
    }

    control(key id, integer levels, integer edges)
    {
        gKeys = levels;
    }

    timer()
    {
        if (gDriver != NULL_KEY) drive();
    }
}

Customising

Everything below is a key of wolfDashboard, so a vehicle’s script decides how its dashboard looks. Send the fixed values once when the driver sits down, then only what changes.

What a vehicle script can customise
To change	Send	Notes
The design	"type", "car" \| "truck" \| "bike"	Switches the driver's dashboard to that design while they sit in your vehicle.
The units	"units", "kmh" \| "mph"	Otherwise the driver's own KM/H or MPH choice is used.
The speedometer's scale	"max_speed", 10 to 1000	Full scale, in the units shown.
The rev counter	"max_rpm", 1000 to 30000 and "redline", 500 to 30000	The redline is never drawn past max_rpm.
Revs and gear	"rpm", 0 to 30000 and "gear", "P" "R" "N" "D" "S" "C" "R1".."R4" "1".."18"	Live while you keep sending them (within 5 seconds).
Fuel and temperature	"fuel", 0 to 100 (%) and "temp", -40 to 150 (degrees C)
Lamps	"lights" 0 off, 1 dipped, 2 main; "indicators" 0 off, 1 left, 2 right, 3 hazard; "handbrake" 0/1; "cruise" 0/1
Truck readings	"adblue" 0-100 (%), "air1" and "air2" 0-12 (bar), "retarder" 0 off or 1-5, "drive_time" seconds since the last break	The Truck design shows these.
The odometer	"odo", kilometres
Warning lamps	"warnings", "oil,abs" ("" for none)	See the list below.
Start again	"clear", 1	Forgets every value this vehicle set.

Warning lamps

Each name in warnings lights its own lamp, in the colours of the ISO 2575 standard: red means act now, amber means take care.

Warning lamp names
Name	Lamp reads	Colour
engine	ENGINE	amber
oil	OIL	red
battery	BATT	red
brake	BRAKE	red
abs	ABS	amber
temp	TEMP	red
tyre	TYRE	amber
airbag	AIRBAG	red
seatbelt	BELT	red
fuel	FUEL	amber
adblue	AdBlue	amber
air	AIR	red
door	DOOR	red
esp	ESP	amber

A truck, using only the keys above

// A truck: the Truck design, air pressure building up, the retarder on stage 2,
// 3 hours 10 minutes since the last break, and a low AdBlue warning.
wolfDashboard(driver, ["type", "truck", "rpm", 1350, "gear", "8",
    "air1", 7.5, "air2", 7.2, "retarder", 2, "drive_time", 11400,
    "adblue", 8, "warnings", "adblue"]);

For the driver

Your design, units, PANEL choice and the manual or automatic box are remembered.
The dashboard opening by itself is on to start with. In WolfViewer it is the WolfDashboardAuto debug setting.
